PVC Roofing

Single-Ply PVC Membrane Roofing Systems

Single-Ply

PVC Membrane Roofing System

PVC Membrane roofing systems (polyvinyl chloride) are typically referred to as vinyl roofing. The PVC of the roofing system is made up of ethylene and chlorine. This roofing system is designed to be stable, flexible and achieve high tearing and breaking strengths.

The PVC Membrane is made by combining the PVC material with a polyester reinforcement scrim between. Seams are hot-air welded together to ensure a water tight seal during extreme weather conditions.

PVC single-ply roofing membrane is built to have superior durability, longevity and performance. Manufactured to be resistant to UV Radiation, strong winds, fire and chemicals.

PVC Roofing System Benefits

PVC Membrane

Proprietary thermoplastic PVC formulation of resins, plasticizers, stabilizers, biocides, flame retardants, and U.V. absorbents.

Weft-Inserted Scrim

Polyester fabric construction with weft insertion, composed of denier threads, provides superior tear and puncture resistance. The polyester thread is treated to prevent wicking.

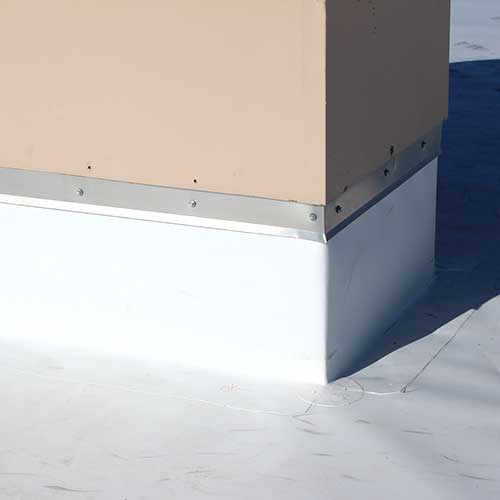

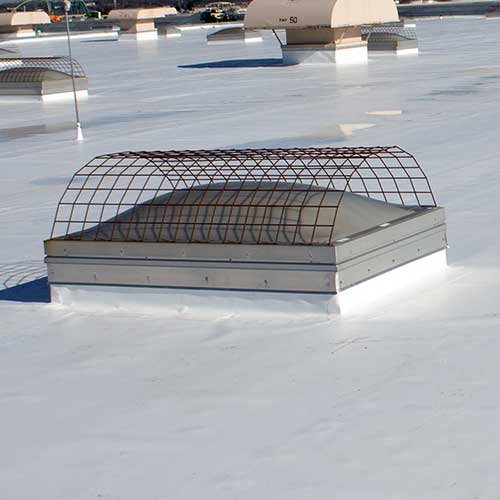

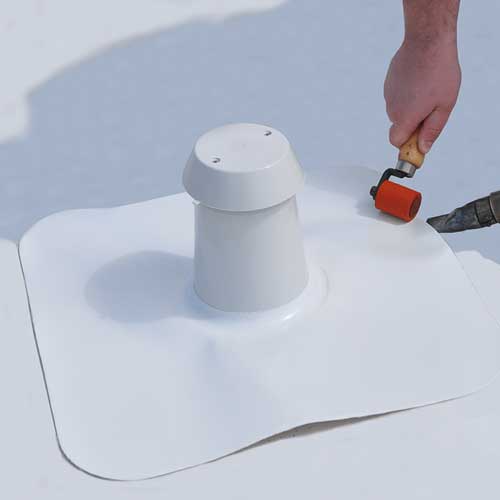

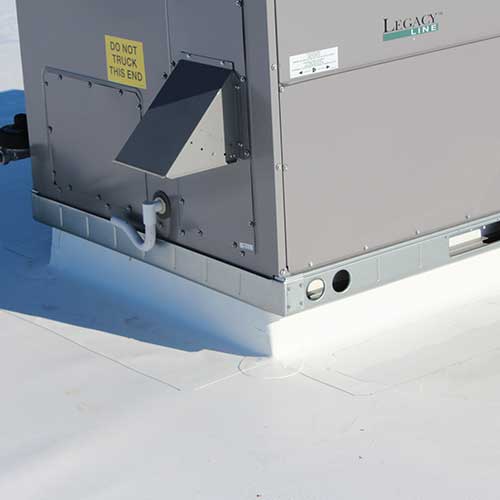

Roofing System Accessories

Each component of your roofing system requires a custom fit to ensure a water tight seal. Installation, Repair and Maintenance services available.

Made To Fit Your Building, Installed by a Certified Contractor, Backed by the Industry's Leading Warranties

Single-Ply PVC Roof Membrane Information

Membrane Details

Specs

Brochures

Safety Data Sheets

Membrane Details

Duro-Last® Single Ply Roofing Membrane

Mil	PVC Film Above Scrim	Weight	Scrim	Bottom Color
40	17 mil	0.22 lbs per sq. ft.	18 x 14	White, tan, gray, dark gray
50	28 mil	0.29 lbs per sq. ft.	18 x 14	White, tan, gray, dark gray, terra cotta
60	28 mil	0.36 lbs per sq. ft.	18 x 14	White, tan, gray, dark gray

Duro-Tuff® PVC Roofing Membrane

Mil	PVC Film Above Scrim	Weight	Scrim	Top Color	Bottom Color
50	26 mil	0.28 lbs per sq. ft.	18 x 9	White *	Gray**
60	31 mil	0.35 lbs per sq. ft.	18 x 9	White *	Gray**
80	41 mil	0.51 lbs per sq. ft.	18 x 9	White *	Gray**

Duro-Fleece® Roofing Membrane

Mil	PVC Film Above Scrim	Overall Thickness with Fleece	Weight	Scrim	Colors
50	26 mil	68 mil	0.33 lbs per sq. ft.	18 x 9	White*
60	31 mil	78 mil	0.39 lbs per sq. ft.	18 x 9	White*
80	41 mil	98 mil	0.53 lbs per sq. ft.	18 x 9	White*
