PVC Membrane roofing systems (polyvinyl chloride) are typically referred to as vinyl roofing.
The PVC of the roofing system is made up of ethylene and chlorine. This roofing system is designed to be stable, flexible and achieve high tearing and breaking strengths.
The PVC Roofing Membrane is made by combining the PVC material with a polyester reinforcement scrim between.

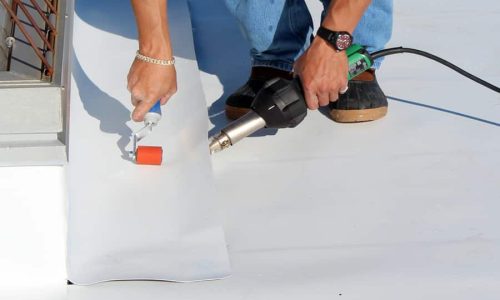

Seams are hot-air welded together to ensure a water tight seal during extreme weather conditions.
PVC single-ply roofing membrane is built to have superior durability, longevity and performance. Manufactured to be resistant to UV Radiation, strong winds, fire and chemicals.
Available in 40, 50, 60, & 80mil
Long Lasting / Durable
15 to 30 Year Warranties
High Solar Reflectivity
UV, Wind & Weather Resistant
Energy Efficient
Fungi Resistant
Mechanically Fastened or Adhered
Proprietary thermoplastic PVC formulation of resins, plasticizers, stabilizers, biocides, flame retardants, and U.V. absorbents.
Polyester fabric construction with weft insertion, composed of denier threads, provides superior tear and puncture resistance. The polyester thread is treated to prevent wicking.
Duro-last Membrane features an 18-by-14 weft-insertion (or “woven”) anti-wicking scrim, providing superior strength and puncture resistance.
Each component of your roofing system requires a custom fit to ensure a water tight seal.
Duro-Last® Single Ply Roofing Membrane
| Mil | PVC Film Above Scrim | Weight | Scrim | Bottom Color |
|---|---|---|---|---|
| 40 | 17 mil | 0.22 lbs per sq. ft. | 18 x 14 | White, tan, gray, dark gray |
| 50 | 28 mil | 0.29 lbs per sq. ft. | 18 x 14 | White, tan, gray, dark gray, terra cotta |
| 60 | 28 mil | 0.36 lbs per sq. ft. | 18 x 14 | White, tan, gray, dark gray |
Duro-Tuff® PVC Roofing Membrane
| Mil | PVC Film Above Scrim | Weight | Scrim | Top Color | Bottom Color |
|---|---|---|---|---|---|
| 50 | 26 mil | 0.28 lbs per sq. ft. | 18 x 9 | White * | Gray** |
| 60 | 31 mil | 0.35 lbs per sq. ft. | 18 x 9 | White * | Gray** |
| 80 | 41 mil | 0.51 lbs per sq. ft. | 18 x 9 | White * | Gray** |
Duro-Fleece® Roofing Membrane
| Mil | PVC Film Above Scrim | Overall Thickness with Fleece | Weight | Scrim | Colors |
|---|---|---|---|---|---|
| 50 | 26 mil | 68 mil | 0.33 lbs per sq. ft. | 18 x 9 | White* |
| 60 | 31 mil | 78 mil | 0.39 lbs per sq. ft. | 18 x 9 | White* |
| 80 | 41 mil | 98 mil | 0.53 lbs per sq. ft. | 18 x 9 | White* |
